10 Common LCD, OLED and TFT Display Questions

Avatar photo

James Prietzel, Product Manager at Intelligent LED Solutions (ILS)

James is the ILS Product Manager for everything related to LEDs and has been with ILS since 2012. He is dedicated to understanding the latest technologies and innovations from leading suppliers in the OptoElectronics world, from optics, to LEDs and to Intelligent LED Drivers.

1. What is a TFT?

TFT stands for ‘Thin Film Transistor’ – it is a type of LCD that gives higher resolution and better image quality than standard LCDs. These are usually coloured, but Mono is becoming more popular and therefore more readily available.

2. What is an OLED?

OLED stands for ‘Organic Light Emitting Diode’. It has a layer of organic compound that emits its own light eliminating the requirement for a backlight. They are super thin, have a really wide viewing angle with exceptional contrast ratios. Some can also be curved, creating all sorts of interesting new applications for example LG’s new ‘wallpaper TV’.

3. How is the brightness of a display measured?

Displays are measured using ‘lumens’, which are also known as ‘nits’. The brightness should be measured in 5 different points on the front of the display to give you an average reading. Adding filters, touch screens or lenses will all decrease the overall brightness of a display so it should always be measured after these add-ons. Some displays are now as bright as 1500 nits or lumens.

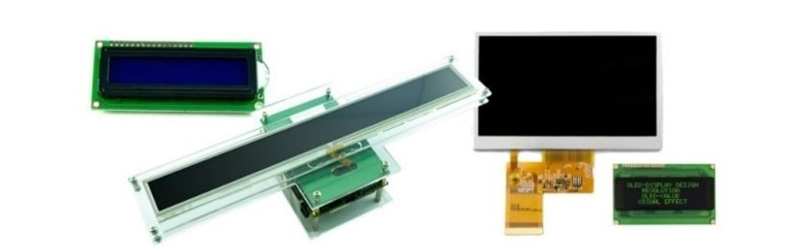

4. Should I go for LCD, TFT or OLED?

This depends on the application and what you want to achieve, this is a very subjective question. LCDs can be very cheap – the older green and black ones (think calculators for example) can be extremely cheap, but they are not as colourful or easy to read as newer technologies. TFTs will give you full colour and a higher solution than an LCD, but they are more difficult to drive and tend to be more expensive. OLED is a relatively new technology. OLEDs are lower power than TFT and offer very good viewing, but have lifetime issues and are only available in smaller sizes.

3. How is the brightness of a display measured?

Displays are measured using ‘lumens’, which are also known as ‘nits’. The brightness should be measured in 5 different points on the front of the display to give you an average reading. Adding filters, touch screens or lenses will all decrease the overall brightness of a display so it should always be measured after these add-ons. Some displays are now as bright as 1500 nits or lumens.

4. Should I go for LCD, TFT or OLED?

This depends on the application and what you want to achieve, this is a very subjective question. LCDs can be very cheap – the older green and black ones (think calculators for example) can be extremely cheap, but they are not as colourful or easy to read as newer technologies. TFTs will give you full colour and a higher solution than an LCD, but they are more difficult to drive and tend to be more expensive. OLED is a relatively new technology. OLEDs are lower power than TFT and offer very good viewing, but have lifetime issues and are only available in smaller sizes.

7. What are the most common LCD resolutions available?

StandardWidthHeight
CGA320240
VGA640480
SVGA800600
WSVGA1024600
XGA1024768
XGA+1152864
WXGA1280720
WXGA1280768
WXGA1280800
SXGA12801024
HD1360768
HD1366768
WXGA+1440900
HD+1600900
UXGA16001200
WSXGA+16801050
FHD19201080
WUXGA19201200
WQHD25601440
WQXGA25601600
4K UHD38402160
8K UHD76804320

8. Can I run a display from a battery?

For LCD and TFT displays, most power is consumed by the backlight. If you turn the backlight off on a standard LCD, the display itself can run from batteries for many days. Nearly all TFTs need to have their backlight on to be able to work, which is why your tablet or phone shuts down the backlight quickly when it detects you are not using it. There are some TFTs that can work with no backlight, but they are unique and expensive. An OLED is self-emitting, so has no backlight. With an OLED, power consumption is controllable by the user – if you want the battery to last longer then dim the display, or show fewer dots as each dot consumes power.

9. Can I use a display in direct sunlight?

Sunlight is bright, very bright! Backlights can be made as bright as 1000 or even 1500 nits, which do a very good job of working in sunlight, but even then it will still wash out if the sun is in the right place – as we all know from our own use of phones or cash machines. An LCD will work very well in direct sunlight. We actually use the sunlight as the backlight, as it bounces off the rear and becomes part of the display. We can also achieve this in TFT by adding special films – it does decrease the overall brightness of the display but enables it to be run in direct sunlight.

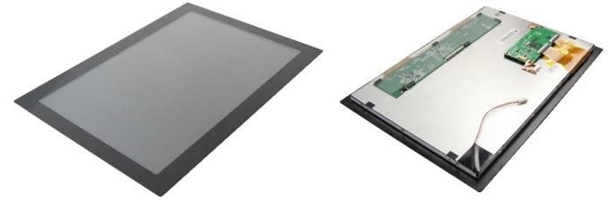

10. Industrial and consumer TFTs, what is the difference?

We all use and handle TFTs in our daily lives with phones, monitors, laptops etc. All of these use TFT displays, but they are very different to TFTs we may use in industrial applications. Why is this? Consumer electronics have a different specification requirement to those of us in the industrial world. From the outside, they may well look the same with the same TFT cell and white LED backlights, but the differences then start to show. Laptop screens for example are designed to be as thin and lightweight as possible – often just 3mm thick and very susceptible to physical damage, not something you would want in an industrial application. Consumer TFTs are also designed for typically one product, and when the next one is launched, their specification will change to meet the requirements of that next generation, often meaning things like mounting holes and connector positions have changed in the space of a few months.

Interfaces to consumer displays also tend to use protocols designed for highly integrated systems like mobile phones and the ability to drive them requires you to use the latest mobile platform’s chipset. Industrial displays have been designed and developed to overcome all these issues. They use fixed rigid mounting holes, the interfaces are industry standard and most importantly they have a guaranteed lifetime of at least 5 years, so you can guarantee you will not have to redesign your own product due to TFT changes.


Intelligent Display Solutions (IDS), like Intelligent LED Solutions (ILS) is a division of Intelligent Group Solutions Ltd. (IGS).
